InfluxDB Time-Series Database System

InfluxDB Database

InfluxDB is an open-source time-series database developed by InfluxData, designed specifically for handling time-stamped data like metrics and events. Built with a focus on high write and query performance, InfluxDB has rapidly gained popularity for real-time analytics, monitoring, and IoT applications.

Intro to InfluxDB

Time-series data is ubiquitous in today’s world, found in everything from stock market trends to IoT sensor readings. InfluxDB is engineered to ingest, query, and store such data efficiently, offering features like high availability, scalability, and data retention policies tailored for time-series use cases.

Influx Quick Facts

  1. High Throughput: InfluxDB is capable of handling millions of write points per second, making it one of the fastest time-series databases for data ingestion.
  2. Query Latency: With optimized query execution, InfluxDB often achieves sub-second query latencies, facilitating real-time analytics.
  3. Storage Efficiency: Thanks to its specialized Time-Structured Merge (TSM) tree storage engine, InfluxDB can achieve up to 90% storage compression, significantly reducing the hardware requirements for storing large volumes of data.
  4. Community Adoption: As of my last update in September 2021, InfluxDB has a large, active community with over 20,000 GitHub stars and contributions from hundreds of developers, indicating its widespread popularity.
  5. Multi-Platform Support: InfluxDB is compatible with a variety of platforms, including Linux, Windows, and macOS, and offers client libraries in languages like Go, Java, and Python, making it highly accessible for different development environments.

Key Features of InfluxDB

  • High-Performance Writes and Queries: InfluxDB is optimized for high-speed data ingestion and complex queries, making it ideal for applications that require real-time analytics.
  • Data Retention Policies: It allows users to set policies to automatically expire and delete old data that is no longer needed, freeing up storage resources.
  • Tagging and Indexing: You can tag data points for more effective querying, indexing, and aggregation.
  • Clustering and High Availability: Offers features for clustering and replication to ensure data availability and fault tolerance.
  • Native HTTP API: The database supports a native HTTP API, making it easier to integrate with other services and tools.

Technical Overview of InfluxDB

How It Works

  1. Data Structure: Unlike traditional relational databases, InfluxDB stores data in a time-structured format, optimizing it for time-series operations.
  2. Compression: InfluxDB uses specialized compression algorithms to reduce storage footprint, thereby improving I/O efficiency.
  3. Sharding: Data in InfluxDB is automatically sharded across multiple disks or servers, ensuring horizontal scalability.
  4. TSM Engine: InfluxDB uses a Time-Structured Merge Tree (TSM) storage engine optimized for high ingestion and query loads.
  5. Extensibility: With Telegraf, a plugin-driven server agent, you can collect and report metrics directly to InfluxDB, further simplifying the data ingestion process.

InfluxDB Versus Alternatives

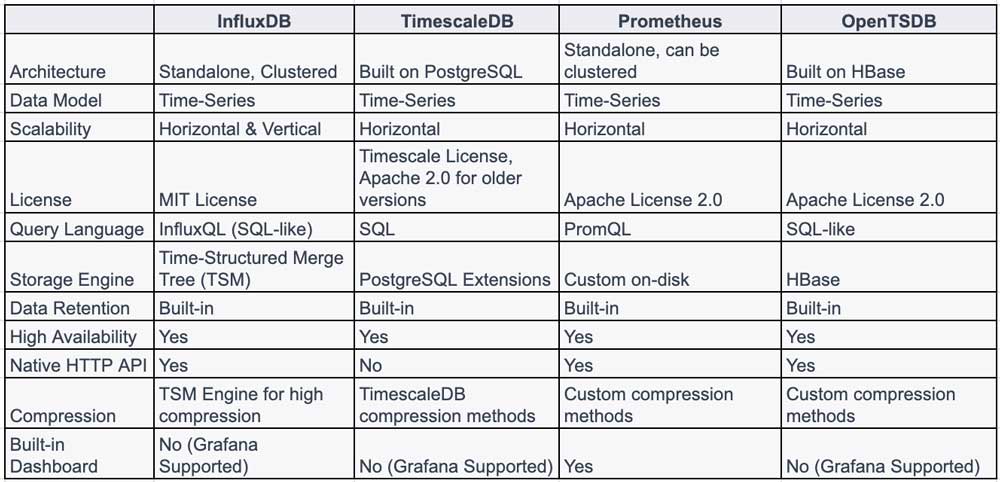

There are several other time-series databases similar to InfluxDB. Below is a chart that compares InfluxDB to its closest alternatives: TimescaleDB, Prometheus, and OpenTSDB.

Getting Started with InfluxDB

To start using InfluxDB, you’ll first need to install it on your machine or cloud instance. It supports a variety of platforms including Linux, Windows, and macOS. After installation, you can use its Command Line Interface (CLI) or HTTP API for various operations.

Installing InfluxDB

For Ubuntu, you can use the following commands to install InfluxDB:

wget -qO- | sudo apt-key add -
source /etc/lsb-release
echo "deb${DISTRIB_ID,,} ${DISTRIB_CODENAME} stable" | sudo tee /etc/apt/sources.list.d/influxdb.list
sudo apt-get update && sudo apt-get install influxdb
sudo systemctl start influxdb

Basic Operations

InfluxDB operations can be executed using its SQL-like query language through the CLI or HTTP API. For example, to create a database, you would run:


To insert a data point:

INSERT cpu,host=serverA,region=us_west value=0.64

InfluxDB stands as a specialized time-series database catering to applications that require efficient real-time analytics and monitoring. With its focus on high write and query performance, data retention policies, and extensibility, InfluxDB is particularly suited for handling the voluminous and time-sensitive nature of time-series data. Whether you are building a monitoring dashboard, IoT application, or real-time analytics platform, InfluxDB offers a robust, scalable, and efficient solution.
